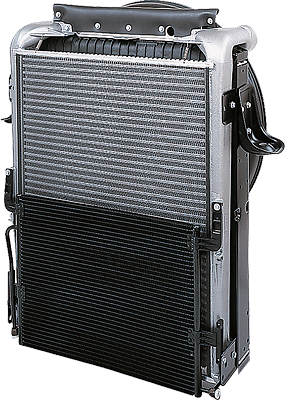

Radiator Removal Steps

Step 1

Turn the engine and the ignition switch OFF

Step 2

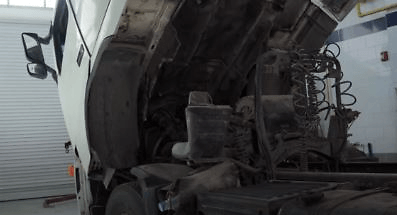

Tilt the truck cab to reach the radiator cap or coolant reservoir cap.

Step 3

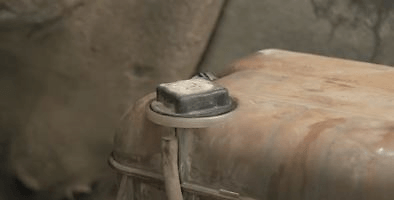

Remove the reservoir cap.

Step 4

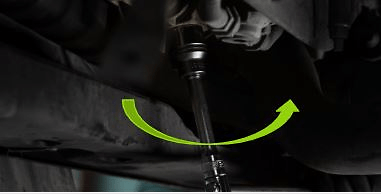

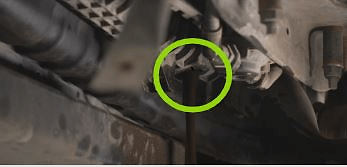

Unscrew the drain valve by using the socket wrench.

Step 5

Drain the coolant in the coolant tray.

Step 6

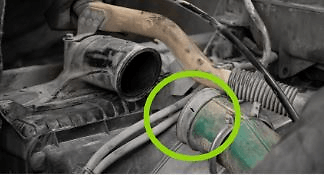

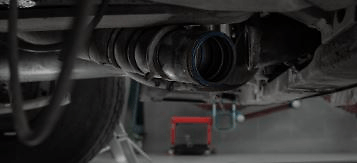

During disassembling the radiator: Dismantle the intercooler accessories Disassemble the intercooler lower hose.

Step 7

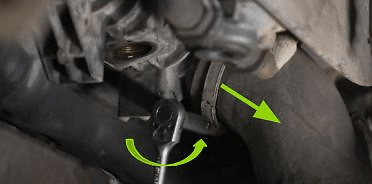

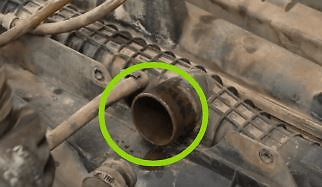

Disassemble the outlet radiator hose.

Step 8

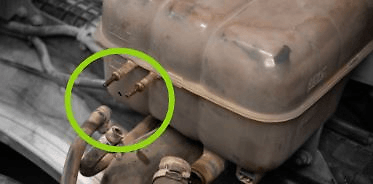

Disassemble all the attached hoses in the reservoir and the coolant level sensor connector.

Step 9

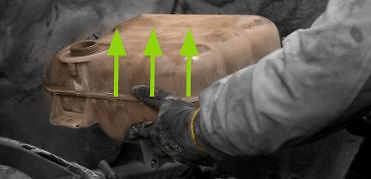

Remove the coolant reservoir by disassembling the 4 bolts.

Step 10

Disassemble the intercooler upper hose.

Step 11

Disassemble the intercooler upper hose.

Step 12

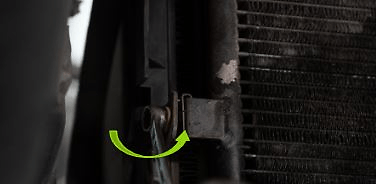

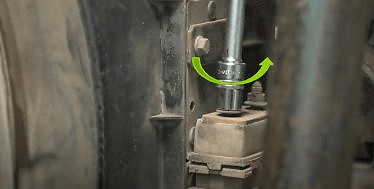

Disassemble the radiator mounts from the both side.
