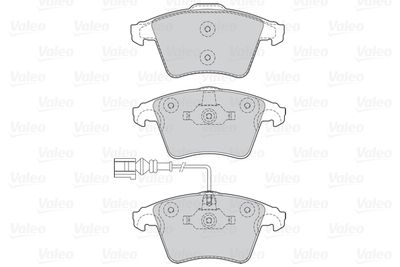

    Brake Pad Set, disc brake FIRST
    no longer deliverable by the manufacturer
    Brake Pad Set, disc brake FIRST
    Brake Pad Set, disc brake FIRST
    Brake Pad Set, disc brake FIRST

    Brake Pad Set, disc brake FIRST

    no longer deliverable by the manufacturer
    Ref. number
    302041
    EAN
    3276423020414
    Fitting Position
    Front Axle
    Brake System
    TEVES
    Width [mm]
    157 mm
    Height [mm]
    74.9 mm
    Thickness [mm]
    19.5 mm
    Width 2 [mm]
    155 mm
    Height 2 [mm]
    73.4 mm
    Thickness 2 [mm]
    19.5 mm
    Wear Warning Contact
    with integrated wear sensor, with integrated wear warning contact
    Number of wear indicators [per axle]
    1 Per Axle
    Warning Contact Length [mm]
    200 mm
    Supplementary Article/Supplementary Info 2
    with anti-squeak plate
    Test Mark
    ECE-R90
    WVA Number
    23467, 23468, 23469
    Weight [kg]
    2.465 kg

    OE Numbers

    ​

    7H0698151
    7H0698151D
    7H0698151F
    JZW698151Q

    Technical Library

    View all

    Explore All Technical Docs and Videos

    Front brake pad replacement
    Fitting Instructions

    Linked Vehicles

    See All Linked Vehicles

    The linked vehicles are from brands

    VW

    VW, MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN), 2.0

    VW, MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN), 2.0

    2003.11 - 2015.08

    Bus

    VW, MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN), 1.9 TDI

    VW, MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN), 1.9 TDI

    2003.04 - 2009.11

    Bus

    VW, MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN), VR6 3.2

    VW, MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN), VR6 3.2

    2004.02 - 2009.12

    Bus
